Pipe Labelling

Industrial Strength | Vinyl Self-Adhesive | Fully Customisable

Description:

• Anti-scratch, water-repellent and UV-resistant protective laminate
• Industrial strength self-adhesive with 4-color printing
• Ideal for indoor and outdoor use from -50 to +90°C
• Transparent version available
• Surface types: brushed aluminium, reflective, photoluminescent
• Halogen and asbestos free

Make your own Pipe Markings in four-colour printing, or why not use or adapt one of our pre-made templates. (see options below)
Pipe Markings are used to easily identify the contents of a pipe before a contractor or operator starts maintenance work. It is vitally important that the contents of a pipe can be identified so that preparation and a risk assessment can be started before maintenance or drainage of a pipe begins.

The British Standard 1710 pipe marking code requires that information about pipe contents must be provided using at least one of the following methods:

• The full name

• The common abbreviation of the name

• The chemical symbol

• The appropriate colour bands (including specific colour coding specified for medical and general building services, and optional colour bands for refrigeration services).


It is also important to show the direction of flow on your pipe marking, you can do this by adding a black or white arrow to your pipe marking. If you are using our online pipe marking tool, you can just select the flow direction and change the colour to black or white, whichever contrasts the pipe marking colour best. Pipe contents are divided into 11 different categories, allocating a specific colour for each

The colour codes follow British Standard 4580

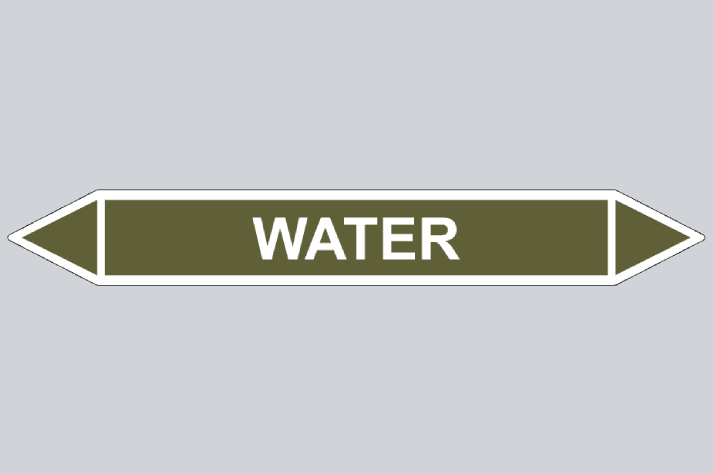

• Green - 12 D 45: Water

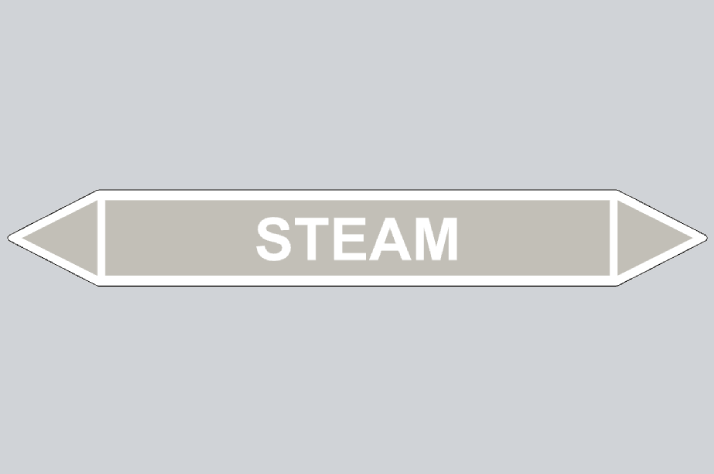

• Silver and Grey - 10 A 03: Steam

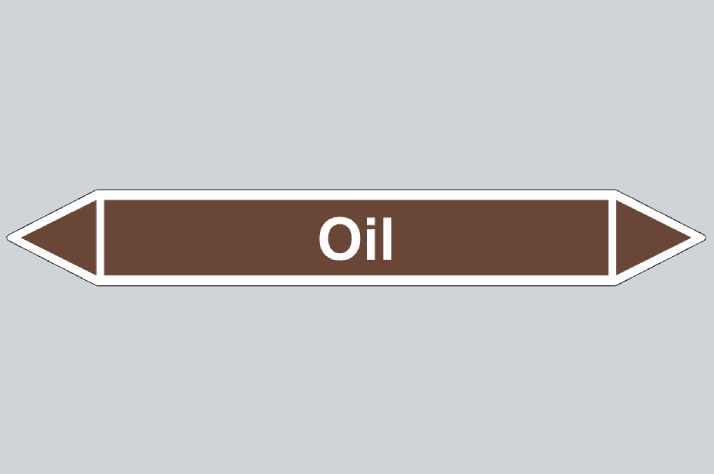

• Brown - 06 C 39: Oils (mineral, vegetable, or animal)

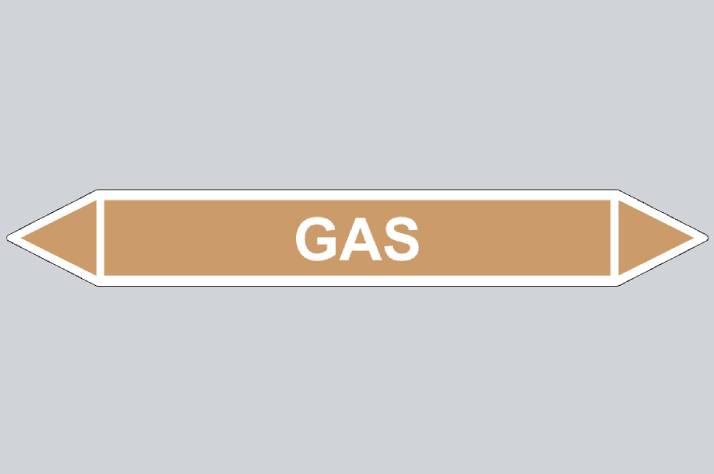

• Yellow - 08 C 35: Gases (in either gas or liquid phase – except air)

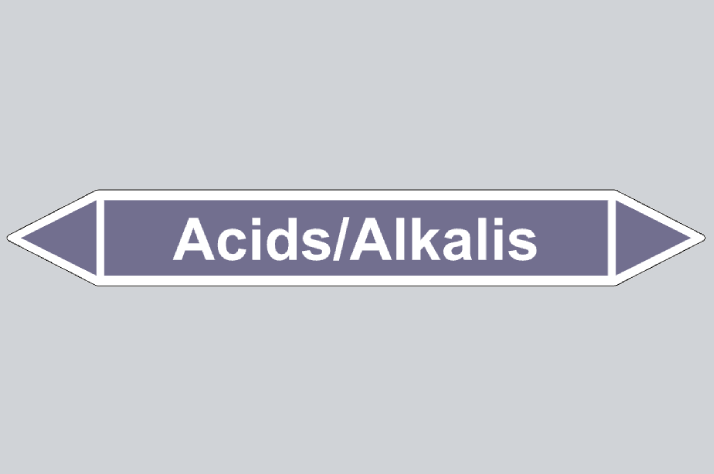

• Violet - 22 C 37: Acids / Alkalis.

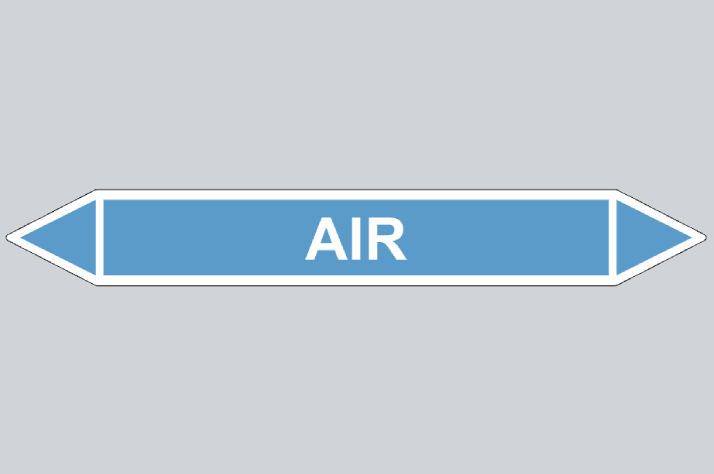

• Light Blue - 20 E 51: Air
• Black - 00 E 53: Other Liquids

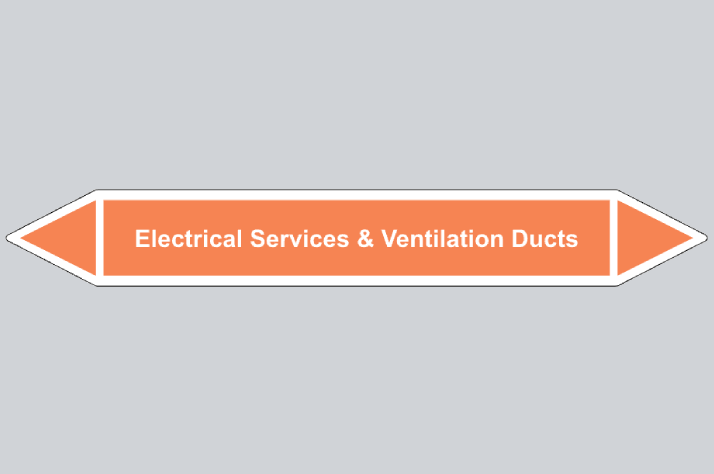

• Orange - 06 E 51: Electrical Services & Ventilation Ducts.

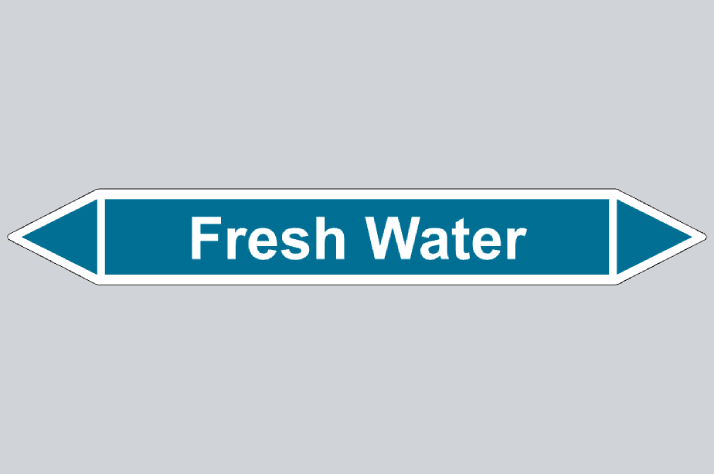

• Blue - 18 E 53: Fresh Water.
• Red - 04 E 53: Fire Fighting.

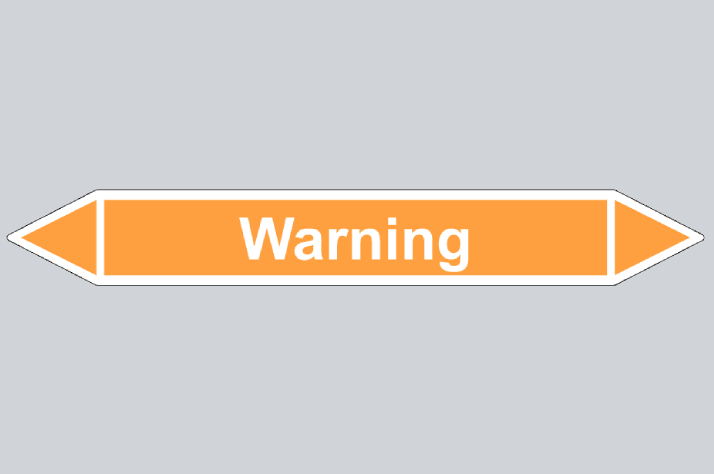

• Yellow - 08 E 53: Warning of Danger.
